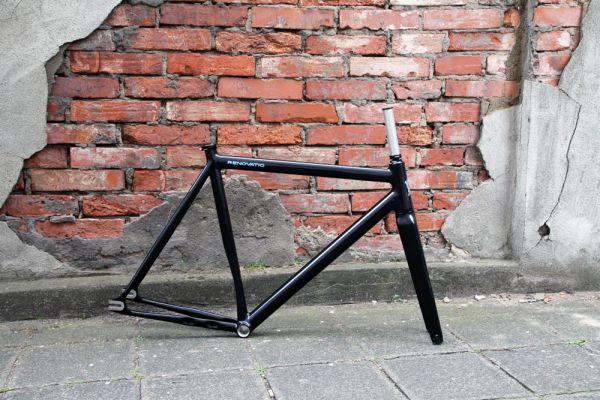

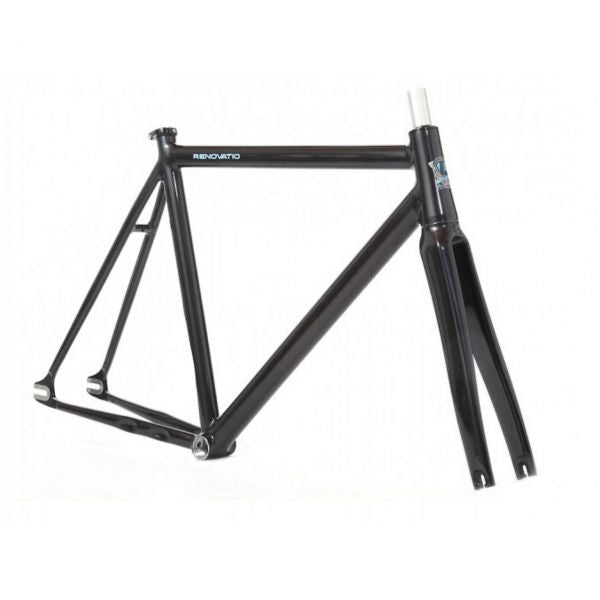

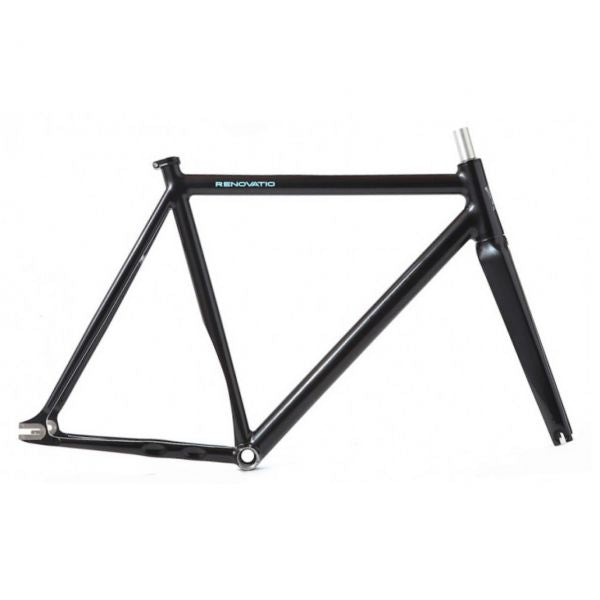

Leader Bikes Renovatio Rahmen-Set 2015

Leader Bikes Renovatio frame set 2015

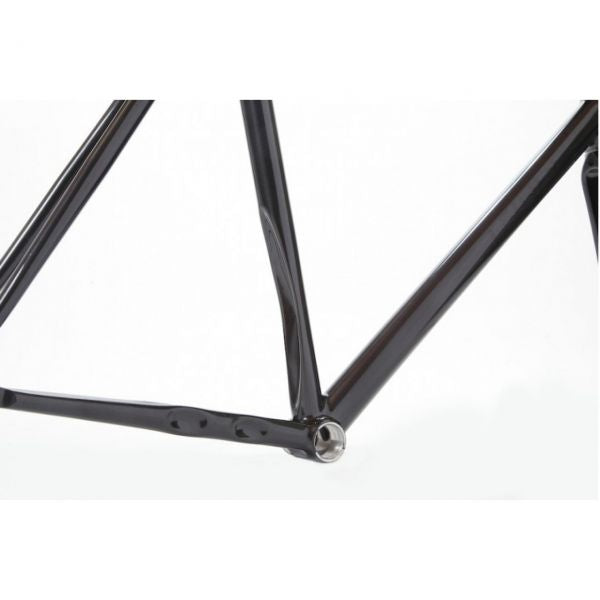

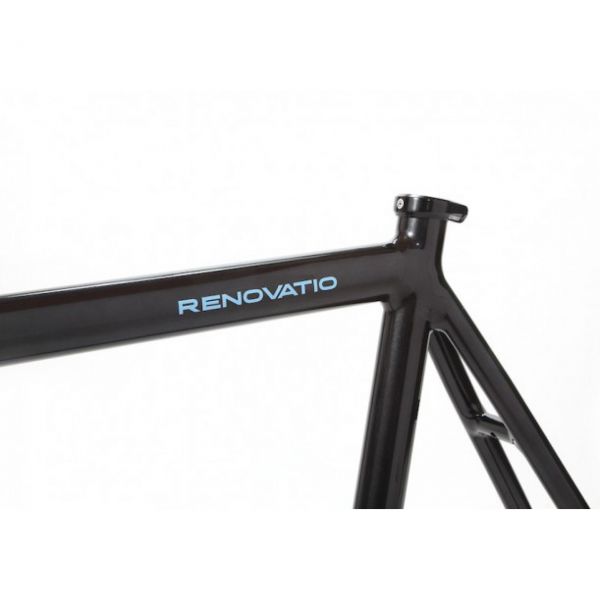

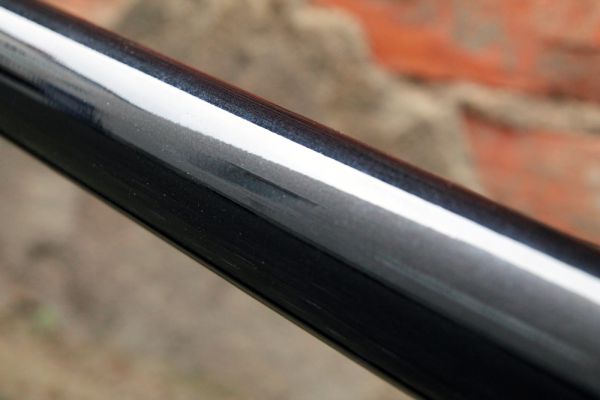

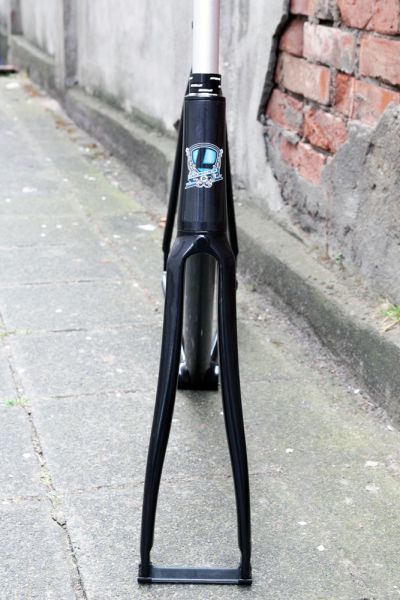

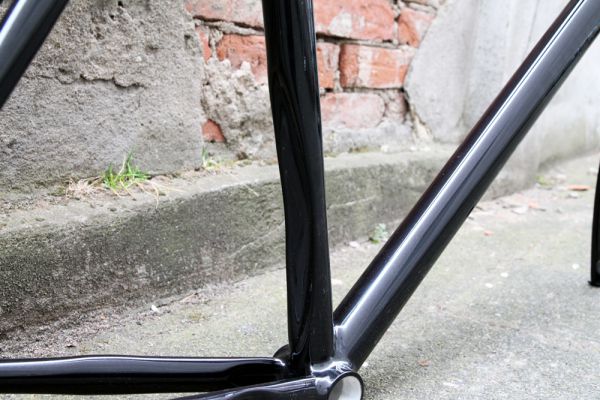

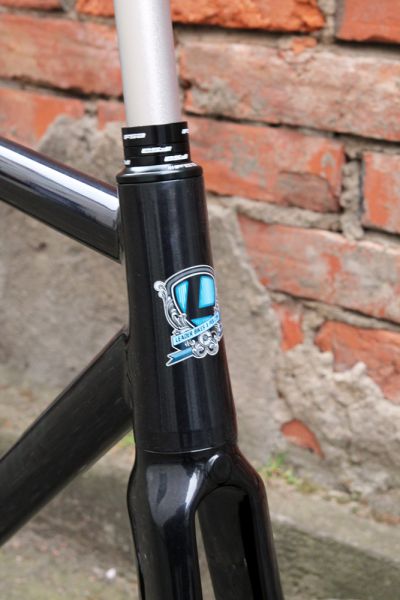

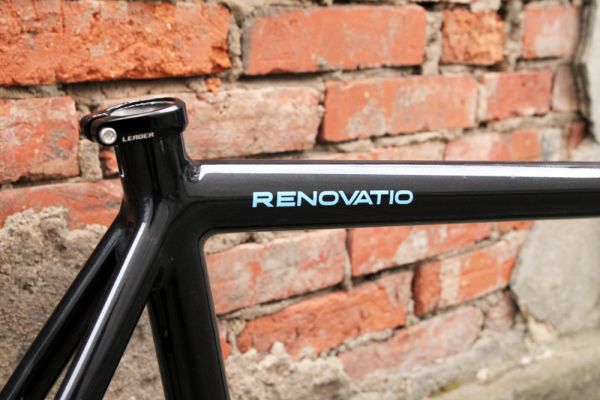

The Renovatio is also back in the race in 2015 with a few changes. The Renovatio, the latest collaboration between Leader Bikes and Pedal Consumption, is also made from high-quality double-butted 7005 aluminum, making it particularly light and stiff. The hydroforming seat tube with a recess for the rear wheel is also special, making the frame ultra-tight and agile without becoming nervous on long journeys. The geometry of the frame is, as is typical for railways, crisp with steep angles and short struts. The workmanship of the frame with the ground weld seams is superb and many other large manufacturers could copy something here. The 2015 Renovatio comes with an even stiffer tapered 1 1/8" - 1.5" head tube and is accordingly delivered with a new, revised Leader I806TR 3K carbon fork with aluminum steerer. The frame does not have a brake hole, but the fork has a hidden hole. The scope of delivery also includes a seat clamp and a matching, fully integrated FSA Orbit C-40 headset.

• Frame: 7005 Series Aluminum double butted

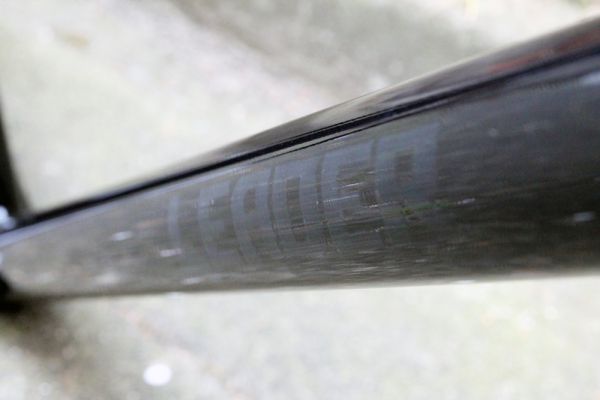

• Fork: 3K carbon with aluminum shaft (28mm rake)

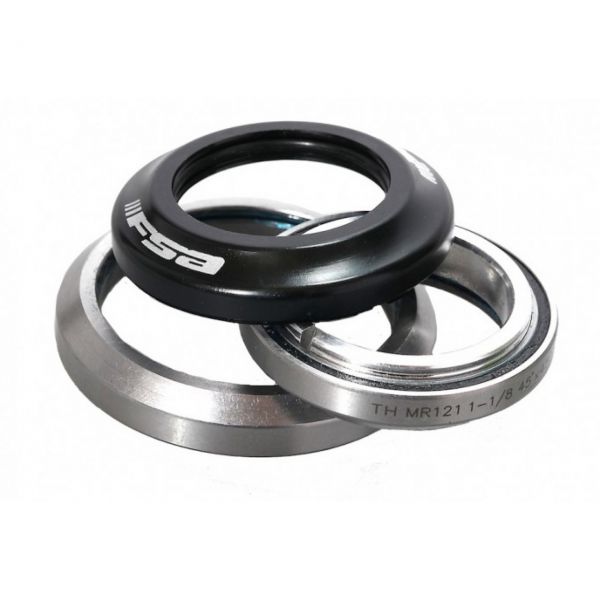

• including tax rate: FSA Orbit C-40 + expander

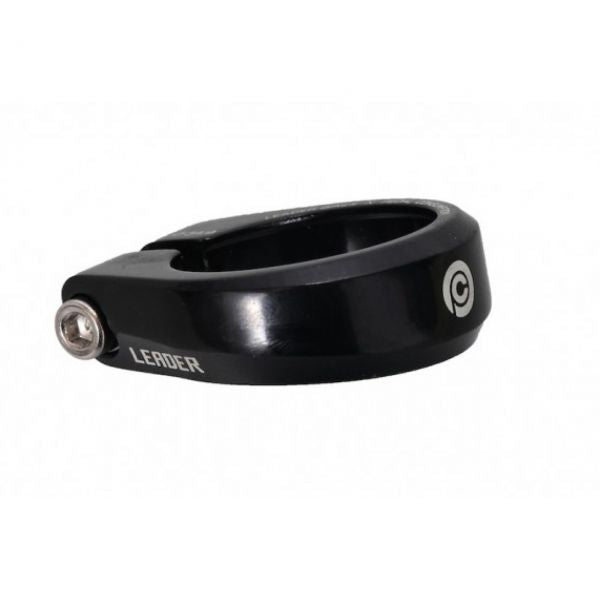

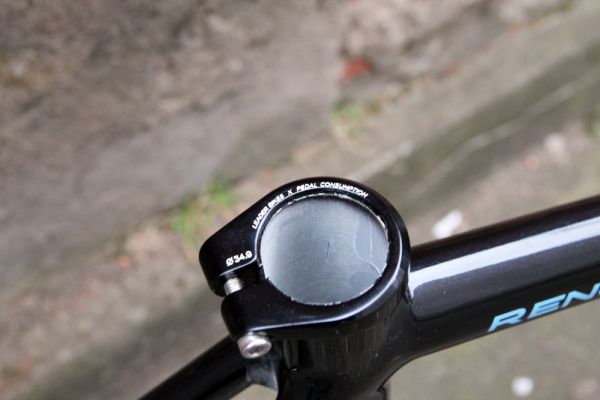

• including custom seat clamp
• Installation width at the back: 120 mm
• Seat post diameter: 31.6 mm
• Bottom bracket: 68mm / BSA

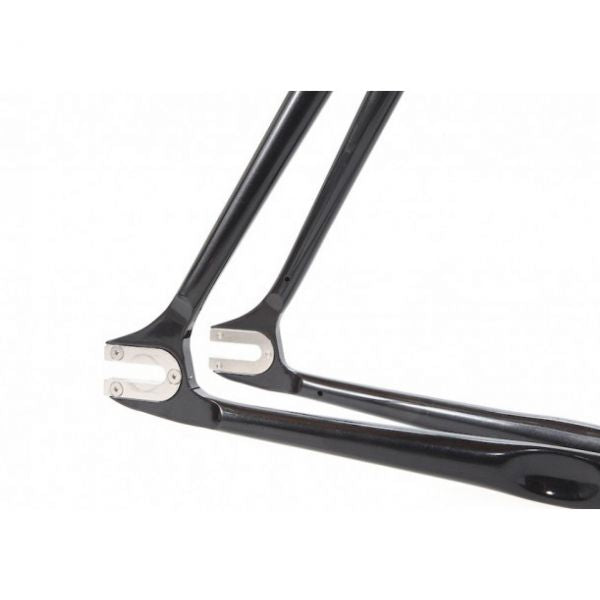

• Interchangeable stainless steel inserts for dropouts
• Sizes: S,M, L or XL
• Weight: 2.45kg (including fork, headset and seat clamp)
• Color: Phantom Pearl

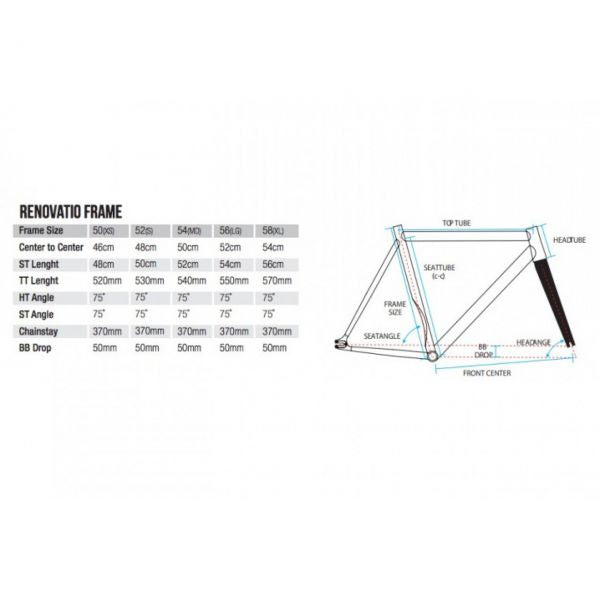

[TAB:Geometry table]
