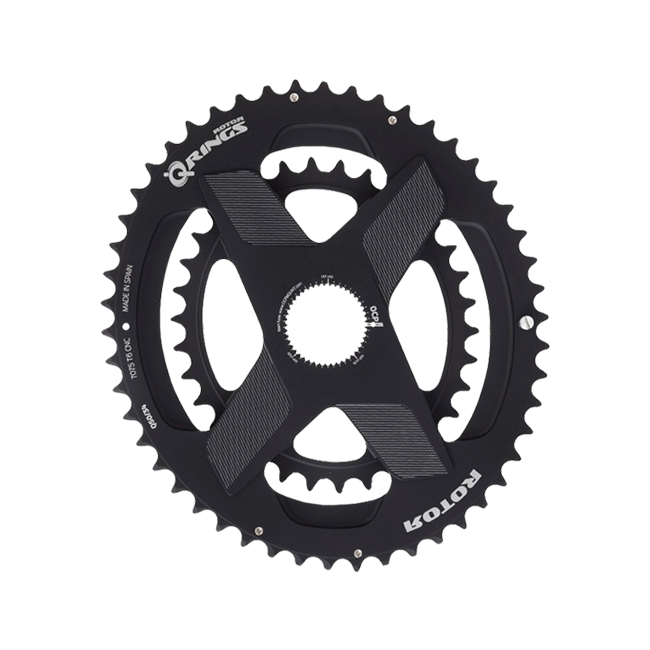

Rotor QRings direct-mount chainring oval, 50/34 teeth

Rotor QRings direct-mount chainring oval - 50/34 teeth

With the modular ROTOR ALDHU, ROTOR has developed a pioneering racing bike crank system that can be freely configured and assembled without special tools or specialist knowledge.
Thanks to the Direct Mount System, changing blades is a matter of minutes when using the combination chainring in one-piece design or with single blades with Direct Mount Spider. an Allen key is sufficient. The ALDHU's Direct Mount System allows for the first time the fine adjustment of oval chainrings in 1-degree increments and thus incomparable individualization to personal requirements. When configuring the ALDHU, several chainring combinations milled from a block (one-piece design) are available and push the system weight below the magical 600 gram mark. Alternatively, the crank can also be configured with a lightweight direct mount spider and two single chainrings.

The chainrings in one-piece design are made from one piece and are mounted on the axle using the direct mount process without tools. To change the chainrings, all you need is a 10mm Allen key to assemble/disassemble the drive side crank arm. The cracking caused by the screw connections between the spider and the chainring is now a thing of the past. 12.5% ​​ovality enhances the performance benefits of oval chainrings; No other oval chainring in the growing oval chainring category offers the adjustment options plus unique ovality, all aimed at improving pedaling performance.

• Weight: 178 grams (52/36)
• Compatible groups: ROTOR UNO 2x11s, Shimano 2x11s, Shimano 2x12s, Sram 2x11s
• Compatibility: 11x, 12x
• Chainring shape: oval
• Compatible Crankset Model: 2INpower, ALDHU, ALDHU Carbon, ALDHU24, INpower, VEGAST, VEGAST24
• Direct assembly
• Material: 7075 ALU
• Ovality: 12.5%
• Manufacturer number: C01-039-11010-0
• ​EAN: 8434366009377
