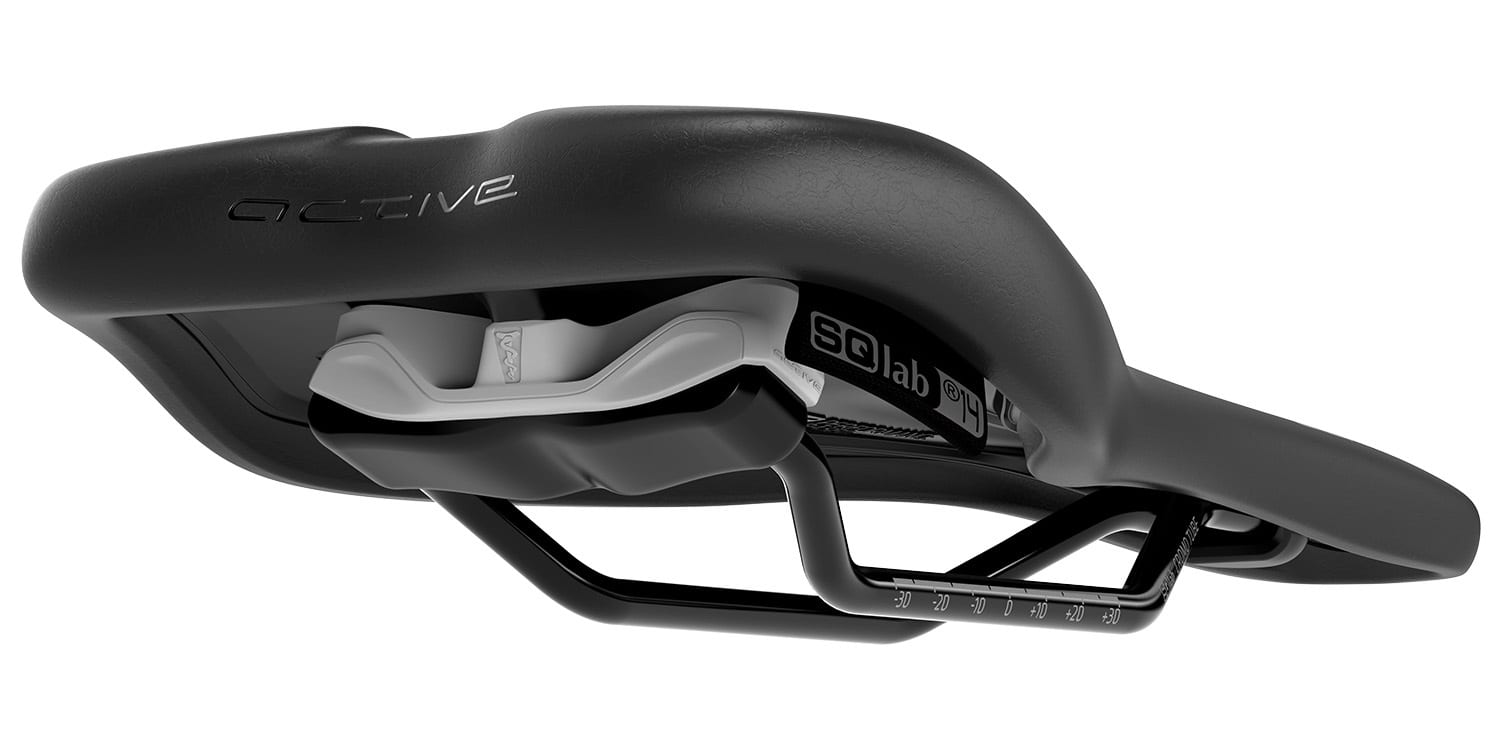

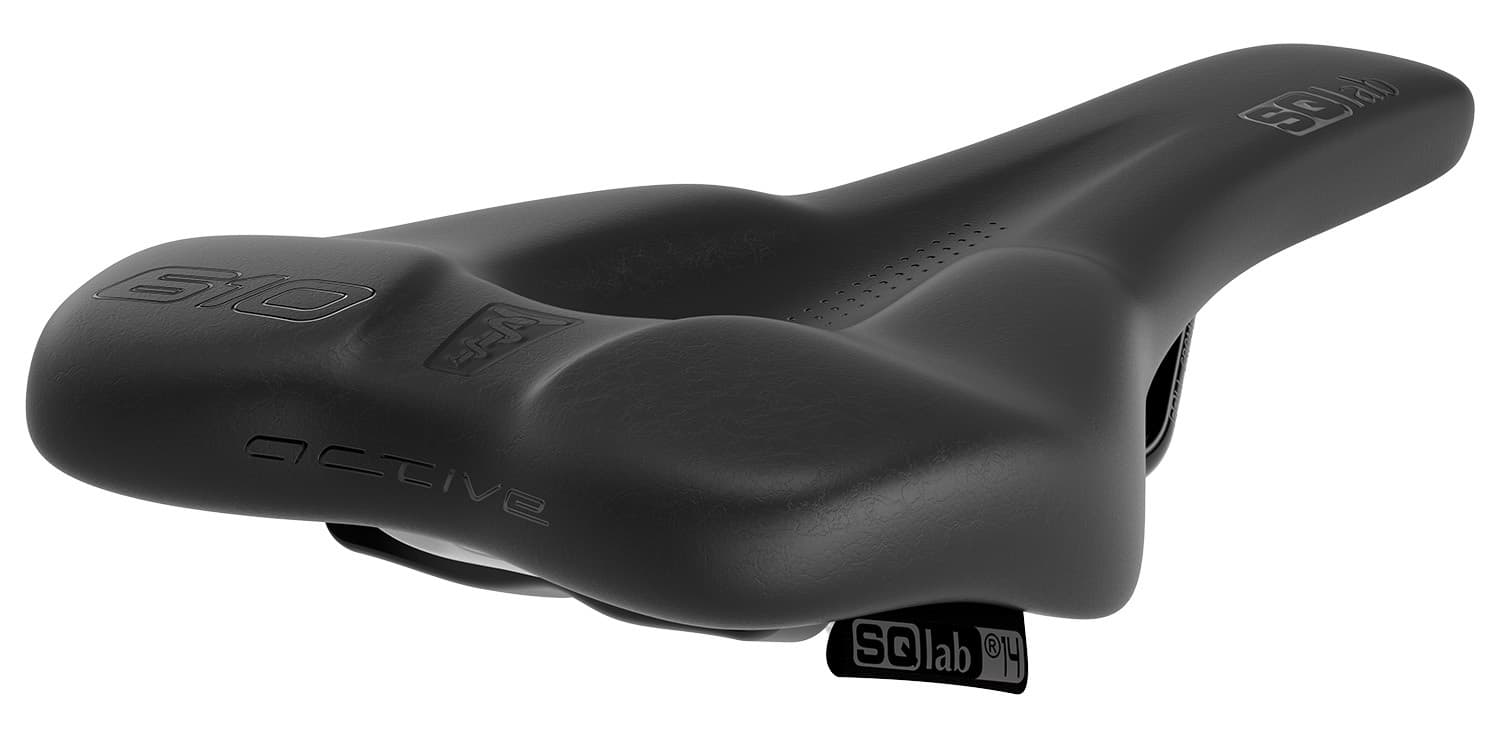

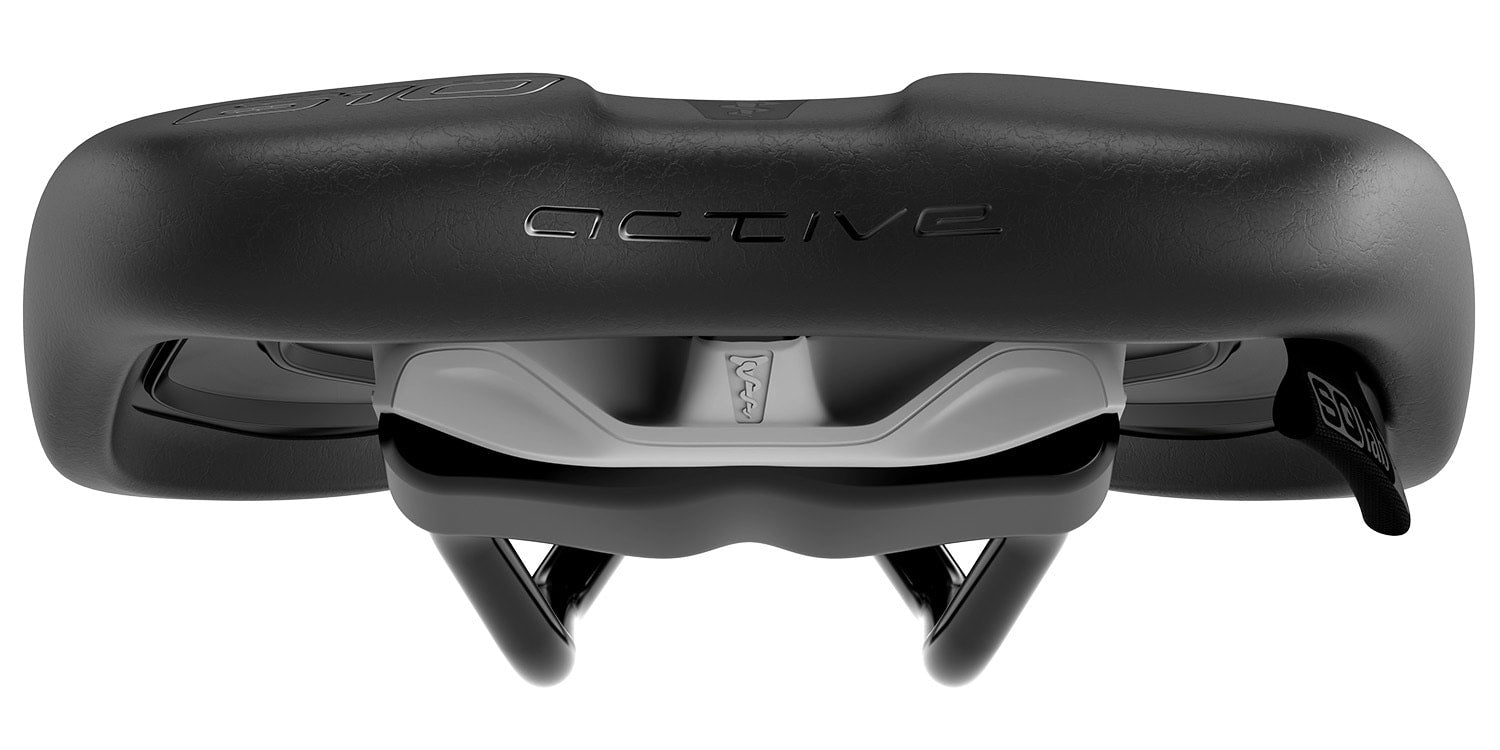

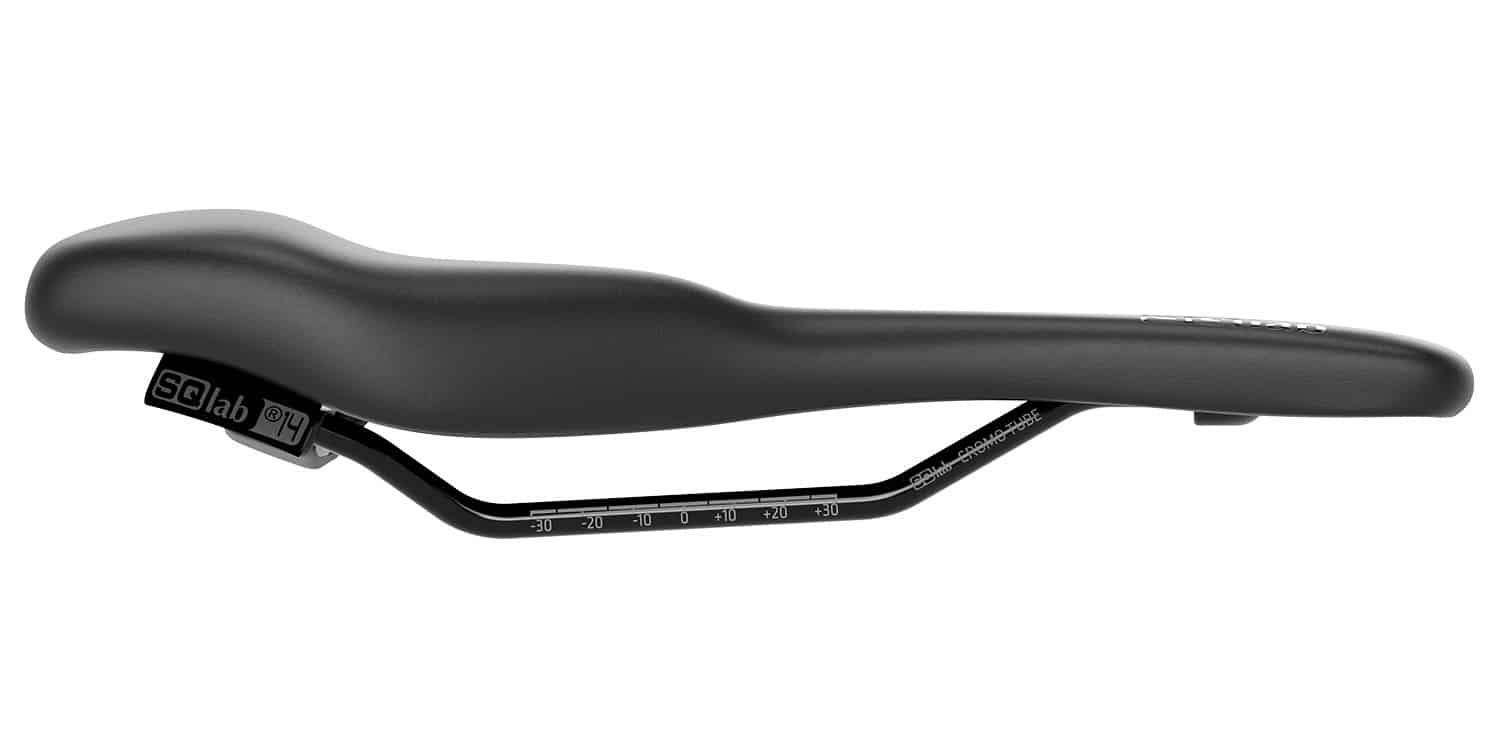

SQlab 610 saddle Ergolux active 2.1

SQlab 610 saddle Ergolux active 2.1

ERGOLUX® stands for maximum comfort.
The 610 ERGOLUX® 2.1 is for the comfort-oriented mountain biker and the sport-oriented trekking rider. Many small detailed improvements in shape, technology and material take the 610 ERGOLUX® active 2.1 to a new level. The two-stage waveform has been specially adapted to the requirements of the comfort-oriented cyclist. Despite the sporty look, the comfort on the sit bones and ischial branches increases. The first step offers perfect rear support in a moderate to sporty sitting position and thus ensures direct power transmission to the pedal. The second stage optimally accommodates the sit bones, or the ischial branches that are supported in the sporty sitting position, thereby ensuring the best possible pressure distribution. The deeper saddle nose ensures pressure relief on the sensitive structures and pubic branches in men and women alike. The 610 ERGOLUX® active 2.1 is equipped with the new active technology with a softer and easier movement with less weight. Thanks to the SQlab active saddle technology, the saddle follows the pedaling movement, comfort increases, the intervertebral discs are mobilized and the pressure on the sit bones is minimized. Pain in the lumbar region, especially on longer tours, can be reduced. The timeless design adapts perfectly to every bike.

WEIGHT
Many findings from development are incorporated into the shell construction and make it significantly lighter.

COMFORT
Many small improvements in the shape add up to noticeably better comfort.

DISCHARGE
A slightly higher, medium ERGOLUX® level and a slightly deeper dip lead to an additional improvement in the relief in the perineal area.

Matching saddle
The prerequisite for maximum comfort is a fit that is perfectly tailored to the cyclist. Available widths: 14 / 15 / 16 / 17 cm

Support and comfort
The first step offers perfect rear support in a moderate to sporty sitting position and thus ensures direct power transmission to the pedal.
The second stage optimally accommodates the sit bones, or the ischial branches that are supported in the sporty sitting position, thereby ensuring the best possible pressure distribution.

Relieving
The saddle nose, which is lower in level, relieves pressure on the sensitive structures and pubic branches in men and women alike.

New active technology
The 610 ERGOLUX® active 2.1 is equipped with the new active technology with a softer and easier movement with less weight.

Relief of the intervertebral discs
Thanks to the SQlab active saddle technology, the saddle follows the pedaling movement, comfort increases, the intervertebral discs are mobilized and the pressure on the sit bones is minimized. Pain in the lumbar region, especially on longer tours, can be reduced.
To specifically strengthen the back muscles, we worked with Dr. med. Markus Knöringer, specialist in neurosurgery, intervertebral disc and spine surgery, developed the SQlab back fibula.

Customizable
The SQlab active technology has not only become lighter but also smoother and can also be adjusted to three degrees of hardness using elastomers.
Elastomers hard, medium, soft - included in delivery

The two-stage ERGOLUX® shape offers balanced pressure distribution between the sit bones and the perineal area. The pressure on the sit bones is distributed over a very large area due to the wave shape. The height difference between the sit bone support and the perineal area is smaller than with the MD Line, which is consistently designed to provide relief. The relief for the 610 ERGOLUX® active 2.1 is 72%.

• Manufacturer number: 2387 / 2388 / 2389 / 2468
• Weight: 334 / 344 / 354 / 364g
• Width: 14 / 15 / 16 / 17cm
• Length: 28cm
• 3 different elastomers included
• Active technology
• Material struts: CrMo Tube (Hollow)
• Shell material: Glass fiber reinforced polyamide compound
• Material upholstery: Light foam
• Relief perineal area: 72%
• Gender: Unisex
