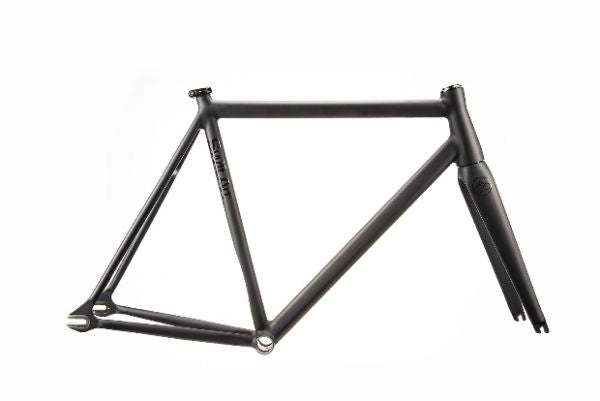

SwiftArt. Foxtrot Rahmen-Set Dark Night Black Matt

SwiftArt. Foxtrot frame set Dark Night Black Matt

The Foxtrot is an all-rounder; its pleasant and comfortable geometry makes it a real all-rounder. This frame is also handcrafted from an ultra-light triple-butted 6061 aluminum tube set by very experienced frame builders. The pipe set is unique due to its teardrop shape. 6061 is very stiff and light at the same time.

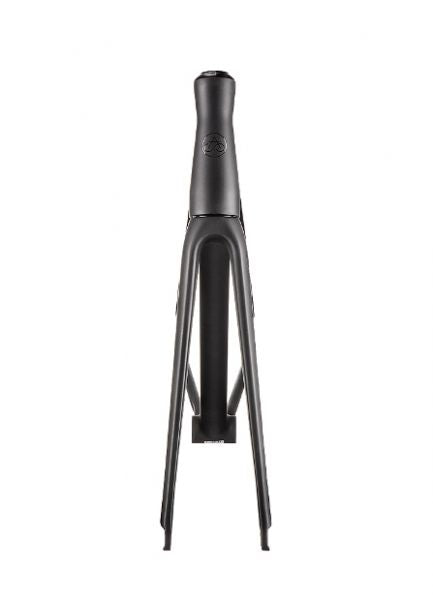

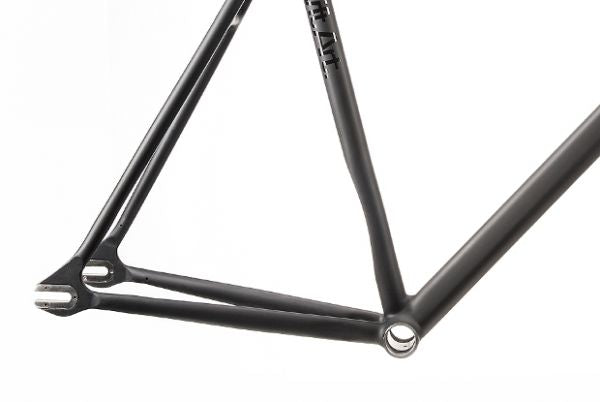

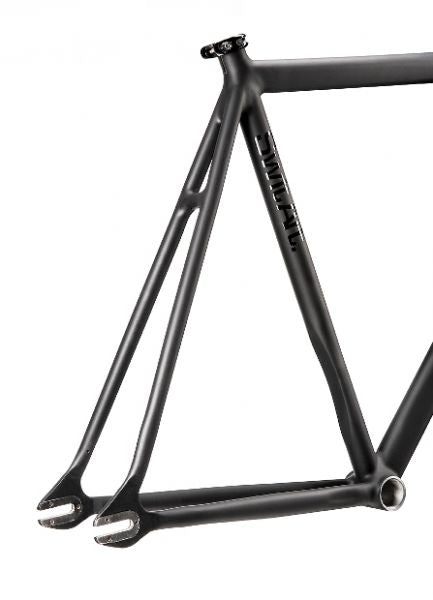

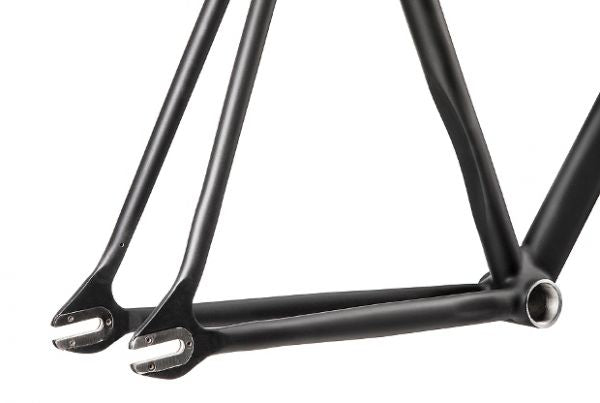

The stitched seams give the frame a more high-quality and smooth look, and the recess in the seat tube allows the rear wheel to be “slammed,” which shortens the wheelbase and makes the bike more maneuverable and agile. The Foxtrot is stiff, comfortable and passes the energy produced directly onto the road. The tapered fork distributes the force better and makes the frame set more stable than normal 1 1/8″ forks. What immediately catches the eye with the Foxtrot is its pleasant yet maneuverable geometry. Pleasant seat and head tube angles and short chainstays give the Foxtrot comfort and maneuverability without being too aggressive. The SwiftArt. Force E2 (tapered) carbon fork with a low rake of 35mm is extremely stiff and stable despite its low weight. The fork is prepared for a brake and has a hidden brake hole that can be drilled out.

The scope of delivery includes a straight SwiftArt. Force full carbon fork with 35mm rake, a high quality, sealed tapered headset and a seat clamp.

• Frame: Triple butted 6061 aluminum teardrop aero tube set
• Fork: SwiftArt. Force full carbon fork, tapered 1 1/8″ – 1 1/2″
• Headset: Fully integrated, sealed
• Head tube: Tapered 1 1/8″ – 1.5″
• Bottom bracket: BSA / Euro BB 68 mm
• Installation width fork: 100mm
• Rear triangle width: 120mm
• Seat post size: 27.2mm
• Ground weld seams
• Incl. headset and seat clamp
• Frame height: S, M, L or XL
• Weight: Frame: 1780g // Fork: 380g (RH M)
• Color: Dark Night Black Matt
